نموذج :
LTS100سعة التحميل :
1200kgوزن التشغيل :
4400kgقدرة دلو :
0.55m³

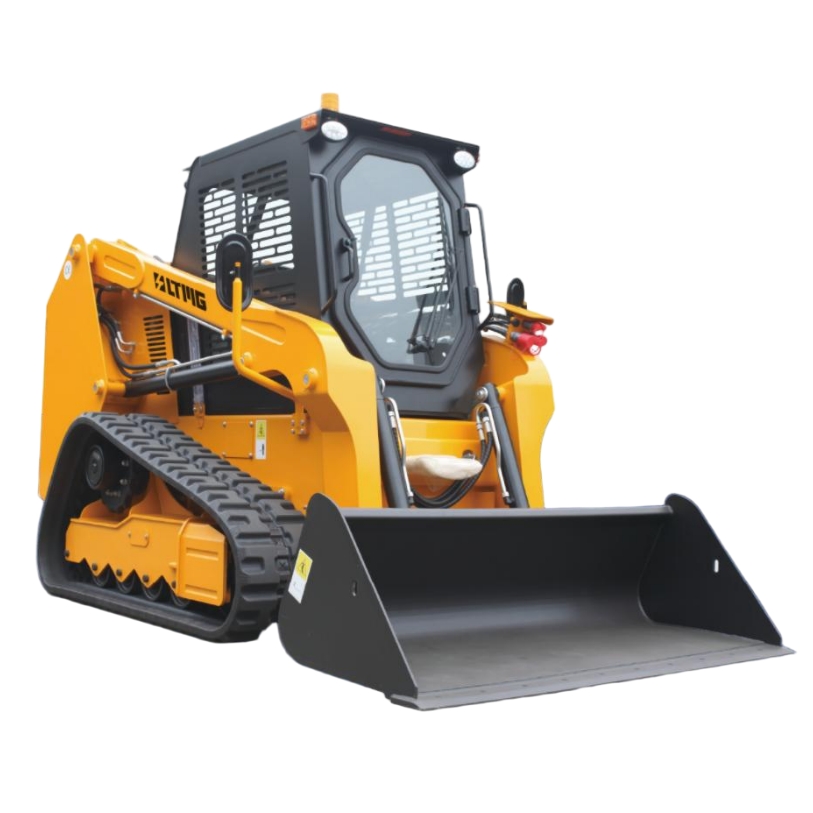

LTS100 Tracked Skid Steer Loader Technical Specifications
| Model | LTS100 |
|
Engine Model |
QUANCHAI 4C6-88C33 |
|
Emission Stage |
China III |
|
Rated Power |
65KW |
|
Rotating Speed |
2200rpm |
|
Max. Speed |
9/15km/h |
|
Operating Load |
1200kg |
|
Max. Loading |
3428kg |
|
Lifting Type |
Radial |
|
Total Cycling Time |
9s |
|
Max. Gradeability |
27 |
|
Bucket Capacity |
0.55m³ |
|
Pressure of Working System |
235bar |
|
Rated Flux |
76L/min |
|
High Flow Flux (Optional) |
140L/min |
|
Fuel Tank Capacity |
125L |
|
Self-weight With Bucket |
4400kg |
|
Overall Operating Height |
4114mm |
|
Height to Bucket Hinge Pin |
3184mm |
|
Height to Top of Cab |
2065mm |
|
Height to Bottom of Level Bucket |
2987mm |
|
Overall Length Without Bucket |
2860mm |
|
Overall Length With Bucket |
3642mm |
|
Dumping Height |
2431mm |
|
Dumping Reach |
641mm |
|
Unloading Angle at Max. Height |
41 |
|
Rollback of Bucket on Ground |
26 |
|
Ground Clearance |
288mm |
|
Angle of Departure |
32 |
|
Front Turning Radius |
2270mm |
|
Rear Turning Radius |
1684mm |
|
Width (Standard Track) |
1880mm |
|
Bucket Width |
1980mm |
|
Track Grounding Length |
1527mm |
|
Track Center Distance |
1480mm |
|
Track Plate Width |
400mm |
With technological innovation our product configuration and parameters will continue to change without notice.

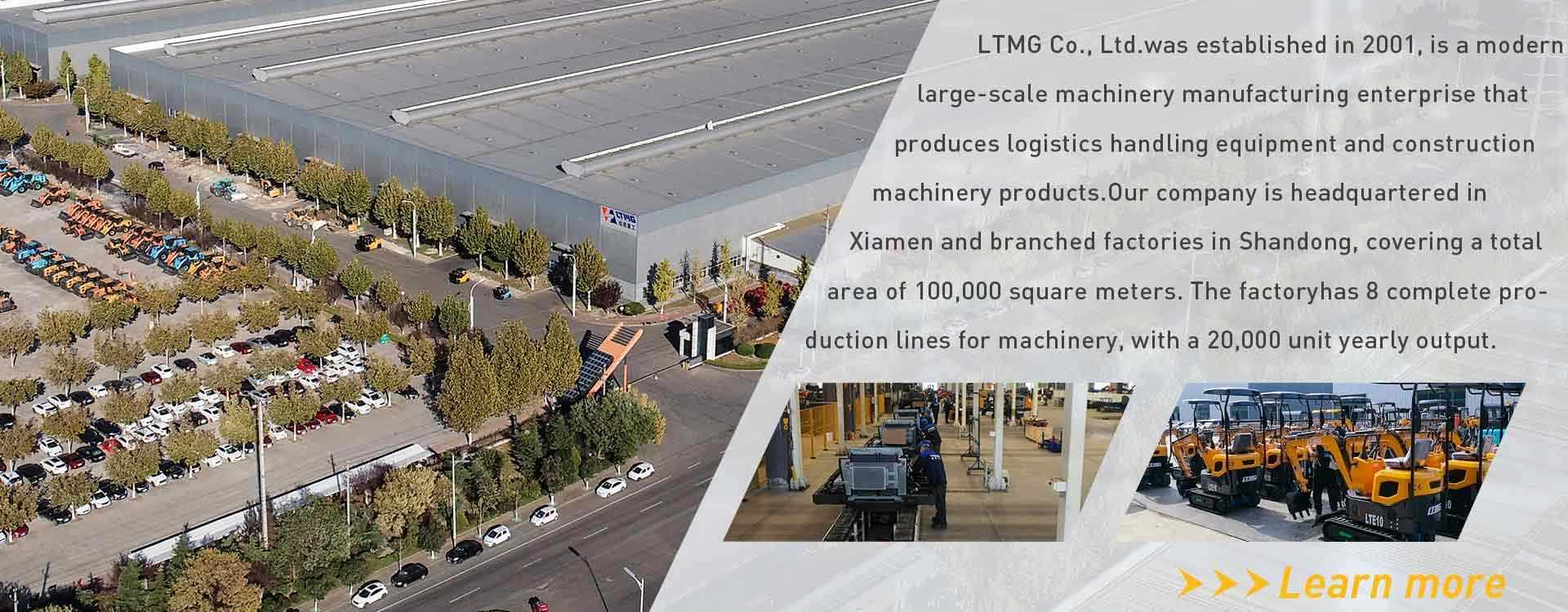

About LTMG

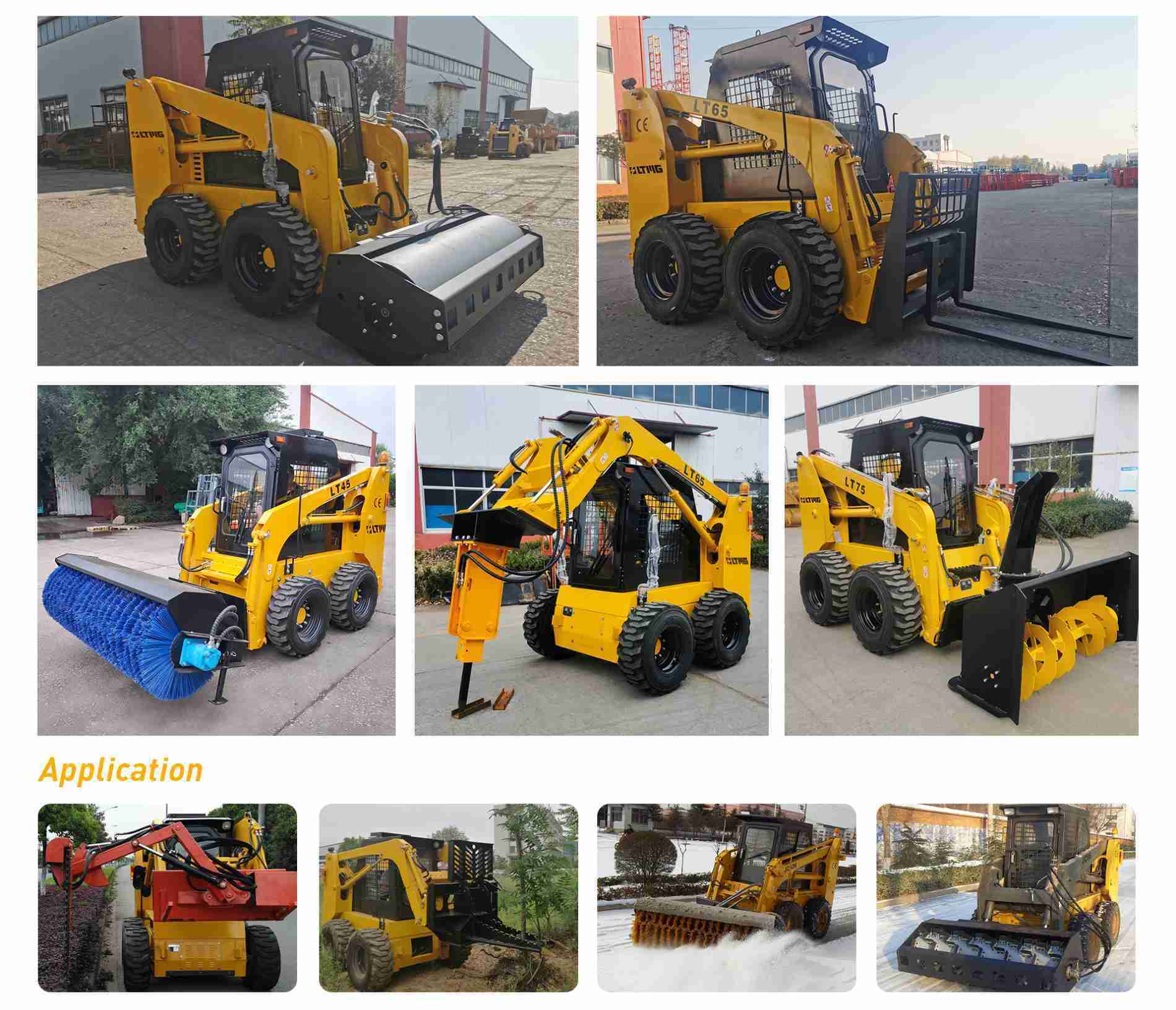

Tracked Skid Steer Loader attachments
Tracked Skid Steer Loader review
Tracked Skid Steer Loader FAQs
A skid steer with tracks is commonly called a tracked skid steer loader, a type of compact equipment designed to replace wheels with tracks for improved performance on soft or uneven ground.
What are the two types of skid steers?
The two main types of skid steers are wheeled skid steer loaders and tracked skid steer loaders. Wheeled models are generally better suited for hard and paved surfaces, while tracked versions are used in more demanding job site conditions where additional stability and traction are required.
Are track skid steers worth it?
Track skid steers are a strong choice for many applications involving challenging ground conditions. They are particularly effective on soft, muddy, or uneven terrain, helping improve machine stability and operational efficiency compared to wheeled alternatives.
