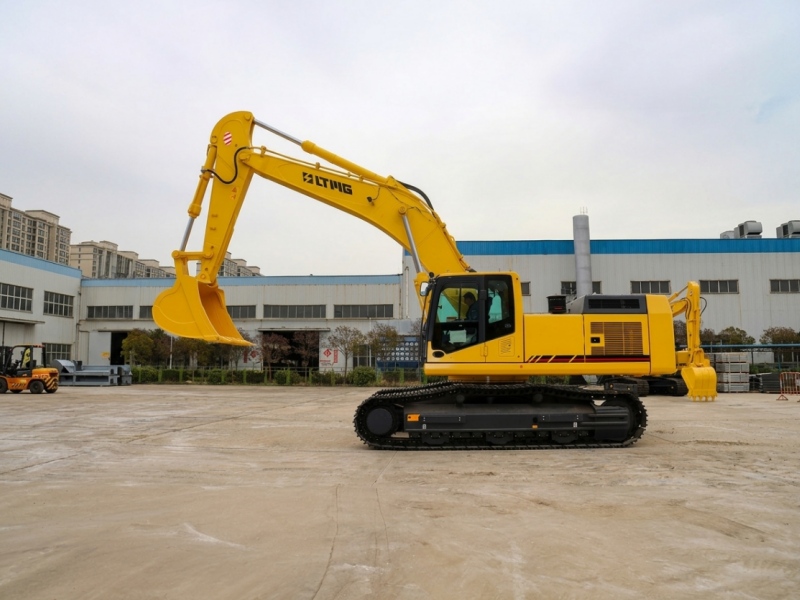

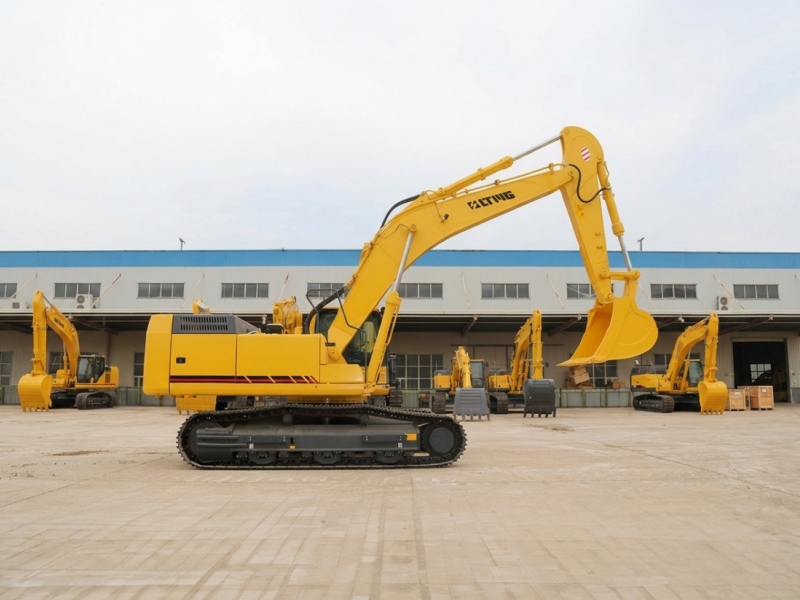

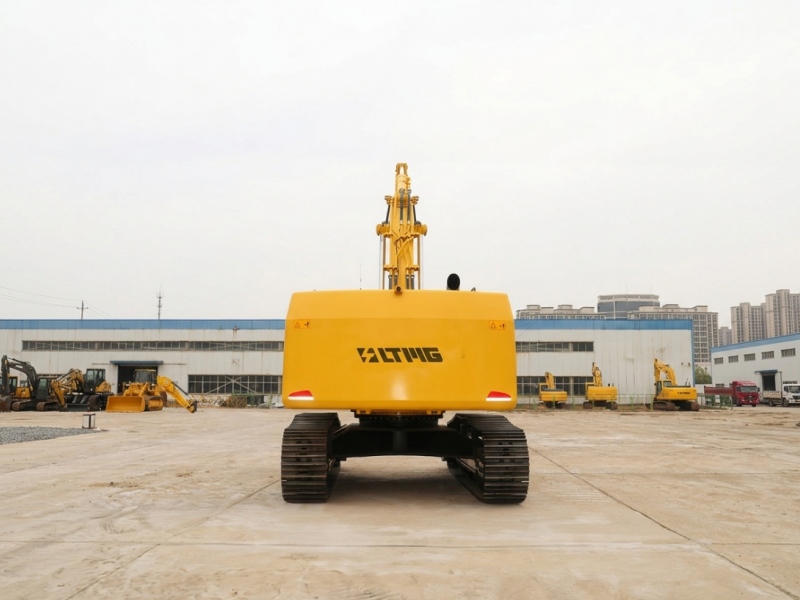

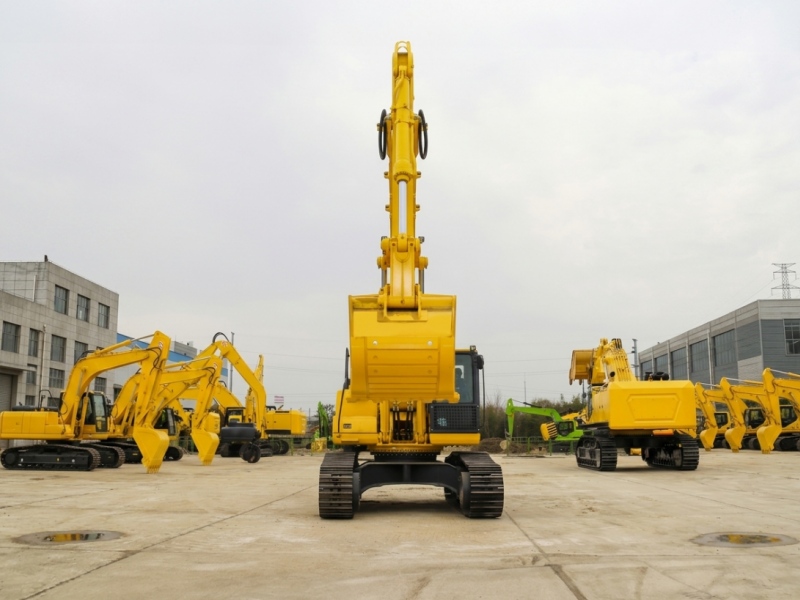

This heavy duty crawler excavator is designed for large-scale construction and mining operations, offering strong digging force, stable performance, and high efficiency. With a 39.8-ton operating weight and 1.9m³ bucket capacity, it is built for continuous heavy-duty work while maintaining reliability and durability in tough working environments.
نموذج :
LTE400وزن التشغيل :
39800kgقدرة دلو :
1.9m3
LTE400 Crawler Excavator Specifications
| Model | LTE400 |
|
Total Weight(T) |
39.8 |
|
Bucket capacity(M³) |
1.9 |
|
Engine model |
Cummins QSM11 |
|
Rated power(Kw/r/min) |
250/1800 |
|
Max displacement(L/min) |
320*2 |
|
Working pressure(Mpa) |
34.3 |
|
Hydraulic pump mode |
MSVISODT-H |
|
Hydraulic tank volume(L) |
335 |
|
Walking speed (high/low)(km/h) |
4.8/2.7 |
|
Swing speed(r/min) |
7.6 |
|
Climbing ability(° ) |
70 |
|
Arm digging force(KN) |
256 |
|
Ground specific voltage(KPa) |
70 |
|
Maximum excavation height(mm) |
10110 |
|
Maximum unloading heigh(mm) |
7060 |
|
Maximum excavation depth (mm) |
7025 |
|
Maximum vertical arm mining depth(mm) |
5430 |
|
The distance when digging 2.5 horizontal plane(mm): |
6790 |
|
Maximum excavation distance(mm) |
10750 |
|
Maximum excavation distance on the ground (mm) |
10530 |
|
Minimum turning radius (mm) |
4580 |
|
Maximum height at minimum turning radius(mm) |
8715 |
|
Distance from the center of rotation to the rear end(mm) |
3640 |
|
Counterweight height (mm) |
2815 |
|
Grounding length (during transportation) (mm) |
6656 |
|
Total length(mm) |
11420 |
|
Overall width(mm) |
3485 |
|
Total heigh(boom top)(mm) |
3485 |
|
Overall height(top of cab)(mm) |
3220 |
|
counterweight ground clearance(mm) |
1310 |
|
Minimum ground clearanc(mm) |
543 |
|
Tail turning radius(mm) |
3640 |
|
Track grounding length(mm) |
4330 |
|
Track length (mm) |
5310 |
|
Rail guage (mm) |
2740 |
|
Track width (mm) |
3340 |
|
Track shoe width (mm) |
600 |
|
Turntable width (mm) |
2955 |
|
Arm length(mm) |
2800 |
|
Boom length(mm) |
6470 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
About LTMG
FAQs
What is a crawler excavator?
A crawler excavator is an excavator machine that moves on tracks instead of wheels. It offers better stability, traction, and performance on rough or muddy terrain, making it ideal for heavy-duty construction work.
How to operate an excavator machine?
To operate an excavator machine, inspect the equipment first, then use the joysticks and pedals to control the boom, bucket, and tracks. Proper training is recommended for safe and efficient operation.
