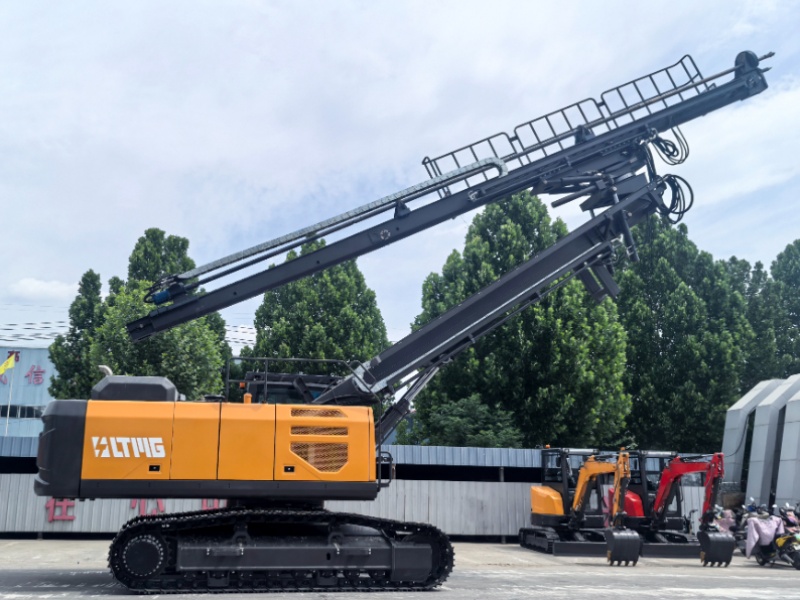

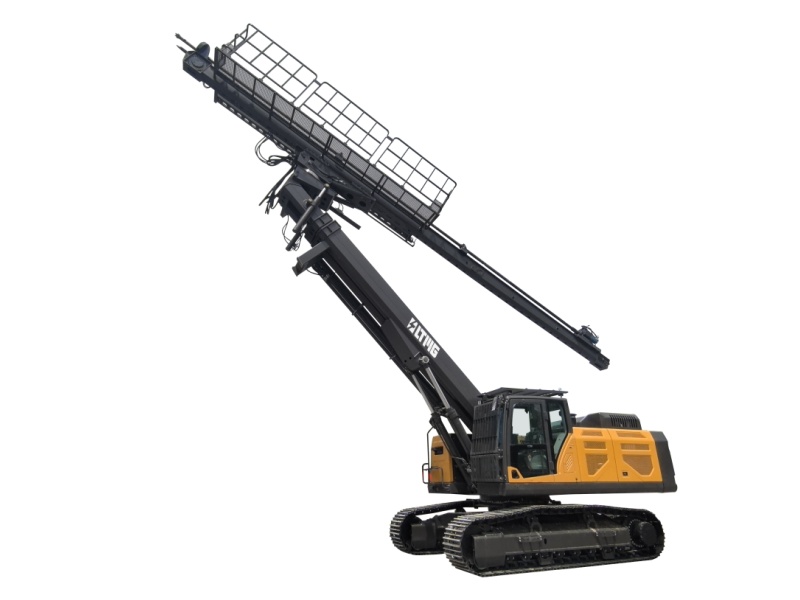

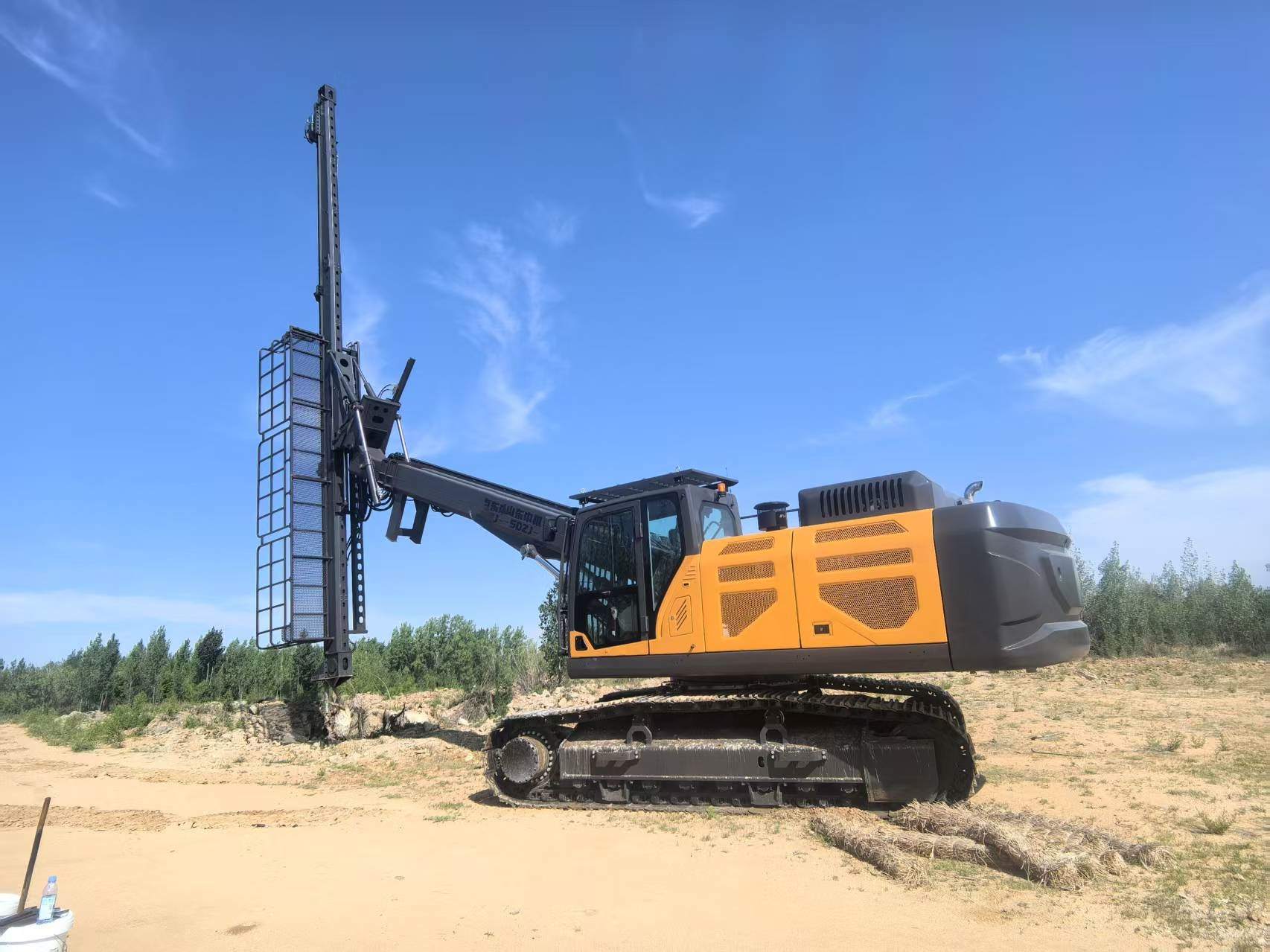

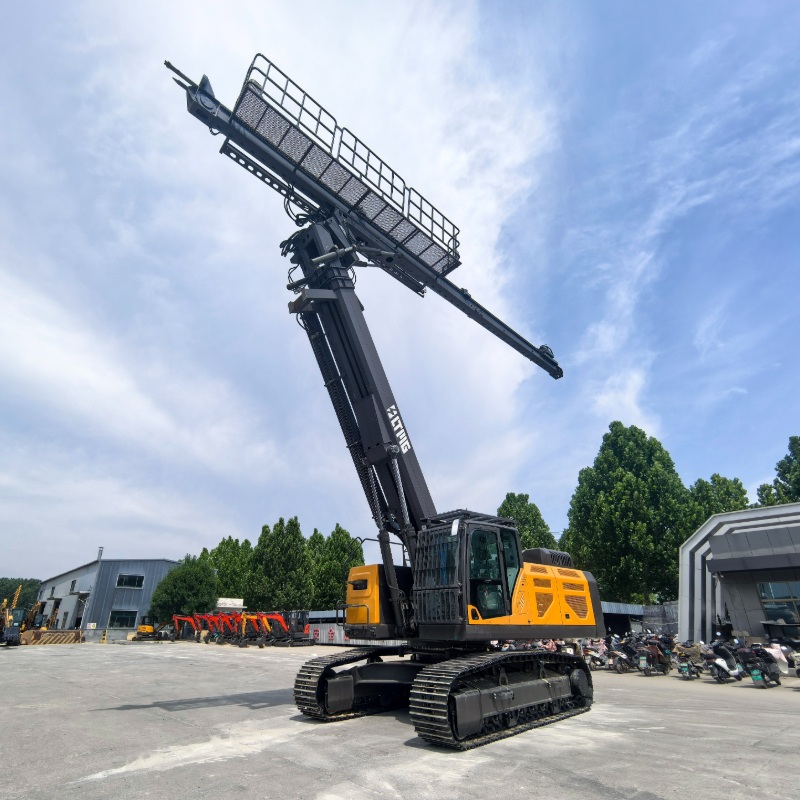

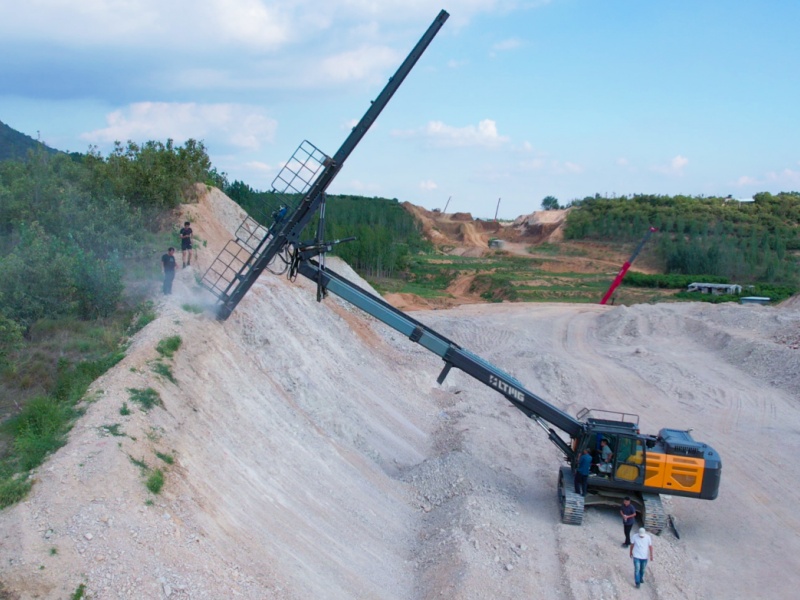

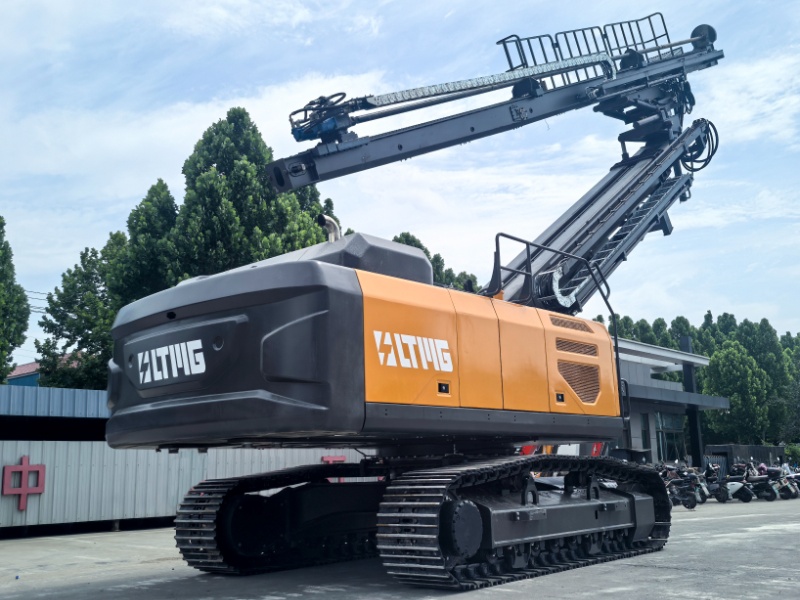

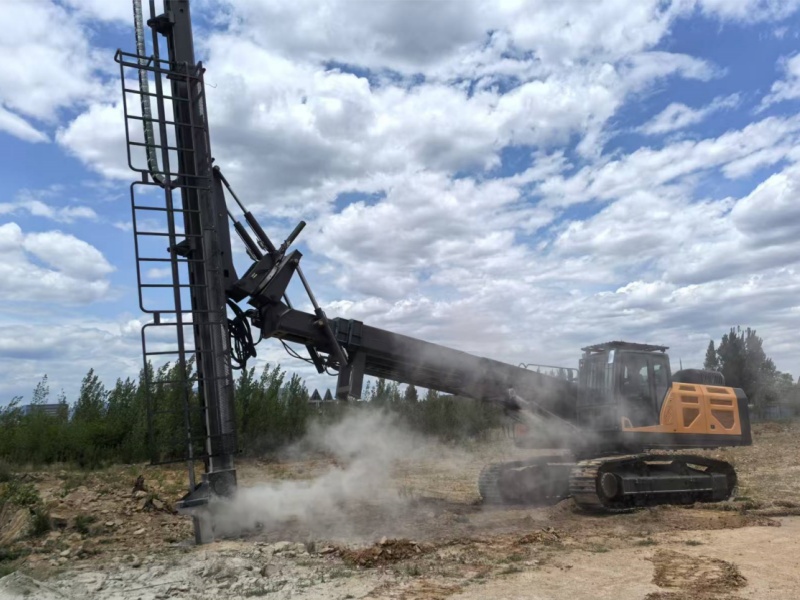

The Hydraulic Anchor Drilling Rig features a multi-angle rotating arm for vertical and slope drilling, making it versatile for ground applications. Its high-pressure screw compressor delivers fast, efficient drilling with effective dust removal and eco-friendly operation. Equipped with a hydraulic clamping system, it allows quick rod changes and drills holes up to 20 meters deep in a single setup.
نموذج :
38650kgوزن :
38650KGODM / OEM :
Supportالطول والعرض والارتفاع :
16000x3190x3400
DR380A Multifunctional Anchor Drilling Rig parameter
| Model | DR380A | |
| Engine | Cummins National IV | B6.7CS4 300C 221KW/2200rpm |
| Cummins Euro V | B6.7 173KW/2000rpm |
|
| Deutz Euro V | TCD7.8L6 200KW/2500rpm |
|
| Cummins National II | 6CTAA8.3-C260 194KW/2200rpm |
|
| Hydraulic System | Main Pump Flow | 2x247L/min |
| Main System Pressure | 32MPa | |
| Pilot System Pressure | 4MPa | |
| Air compressor parameters | Working Pressure | 10bar |
| Discharge Volume | 10m³/min | |
| Technical Parameters | Hole Diameter Range | Φ76-180mm |
| Drilling Depth | 20m | |
| Drill Pipe Diameter | Φ65/76 | |
| Maximum Hole Height | 18m | |
| Hole Depth At One Time | 10.8m | |
| Maximum Propulsion Force | 43KN | |
| Maximum Lifting Force | 50KN | |
| Maximum Output Torque Of Drill Pipe | 4000/9000Nm | |
| Weight Of The Whole Machine | 38650kg | |
| Travel Speed High/Low | 3.8/2km/h | |
| Maximum Climbing Degree | 35° | |
| （LxWxH）Overall Dimensions (Lxwxh) | 16000x3190x3400 | |
| Width Of Track Plate | 600mm | |
| Wheelbase | 4099mm | |
| Track Distance | 2590mm |
