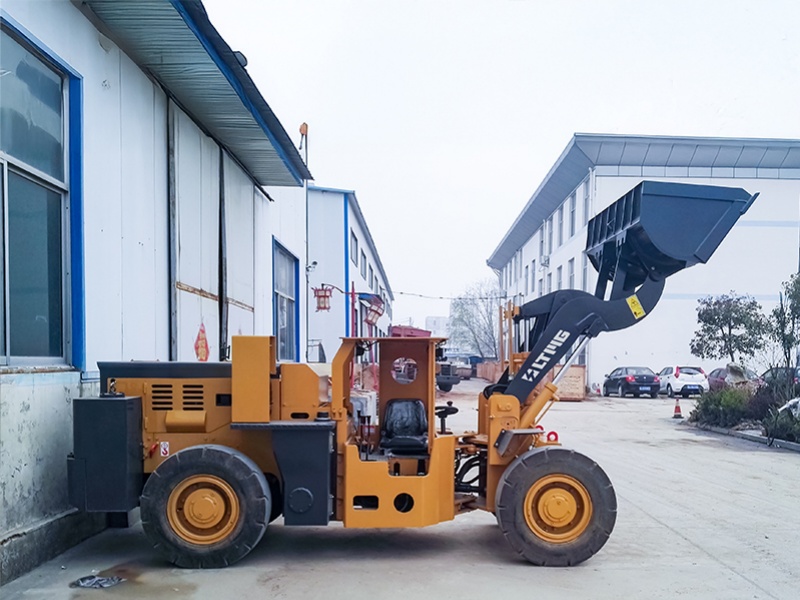

The 2-ton underground wheel loader features sideways seating, a low-speed high-torque YTO or Cummins engine, and a mining-customized hydraulic torque converter for stable, efficient performance.
Equipped with air-over-hydraulic brakes and a DOC+water filtration exhaust system, it ensures safety and reduced emissions. Compact with a small turning radius, it excels at shoveling, loading, and transporting in mining, roadway excavation, and material handling operations.
نموذج :
ltw20سعة التحميل :
2000kgقدرة دلو :
1.0m³ODM / OEM :
Support
LTW20 2 Ton Underground wheel loader Parameters
| Item | Specification |
| Model | LTW20 |
| Bucket Capacity | 1.0m³ |
| Rated Load | 2.0 t |
| Operating Weight | 6.0 t |
| Speed | 0-19 km/h |
| Forward Gear | I 0-6.5 / II 0-19 km/h |
| Reverse Gear | I 0-6 / II 0-18 km/h |
| Grade Ability | 15° |
| Overall Dimension (L*W*H) | 5400*1800*1850 mm |
| Turning Radius (Inner/Outer) | 3100 / 5550 mm |
| Min. Ground Clearance | 290 mm |
| Wheel Base | 2700 mm |
| Wheel Tread | 1370 mm |
| Max. Dumping Height | 1700 mm |
| Dumping Reach | 935 mm |
| Engine Model | YTO LR4A3Z-22 / CUMMINS 4BTA3.9-C80 |
| Rated Power | 70 / 60 kW |
| Tire Model | 15/70-18 or 9.75-18 |
With technological innovation, our product configuration and parameters will continue to change without notice; If there is any doubt, the specific confirmation of our international trade sales shall prevail.

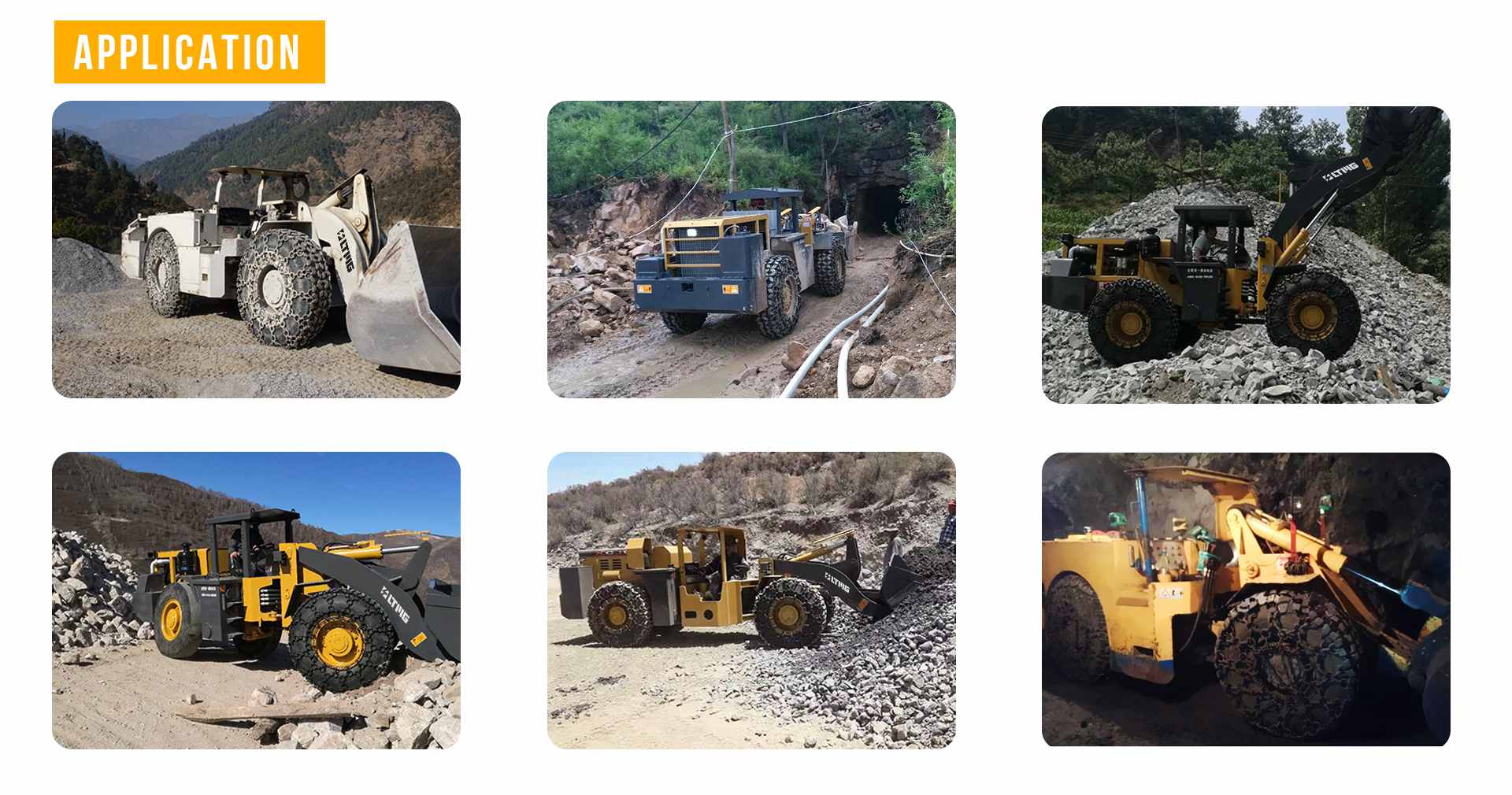

Efficient Underground Mining
The underground loader is designed for confined and harsh mining environments, such as tunnels, shafts, and narrow underground roadways. Its compact size, strong traction, and durable structure allow efficient loading, hauling, and dumping of ore or waste rock in low-profile conditions. It ensures high productivity and safety in underground mining operations.

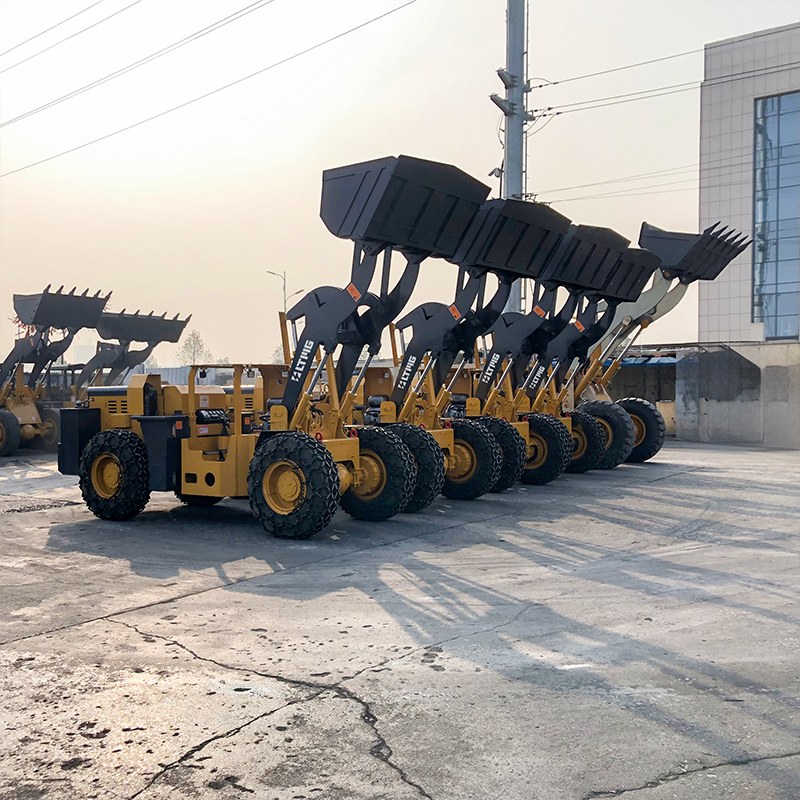

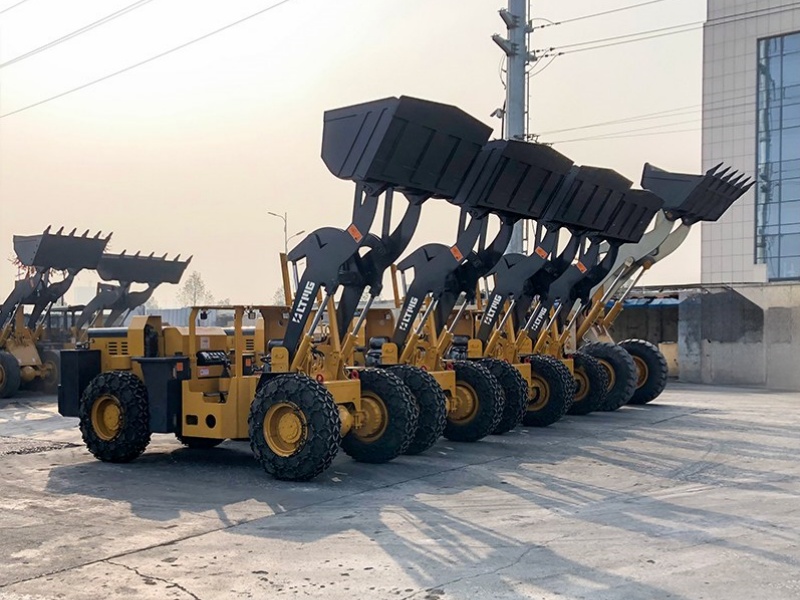

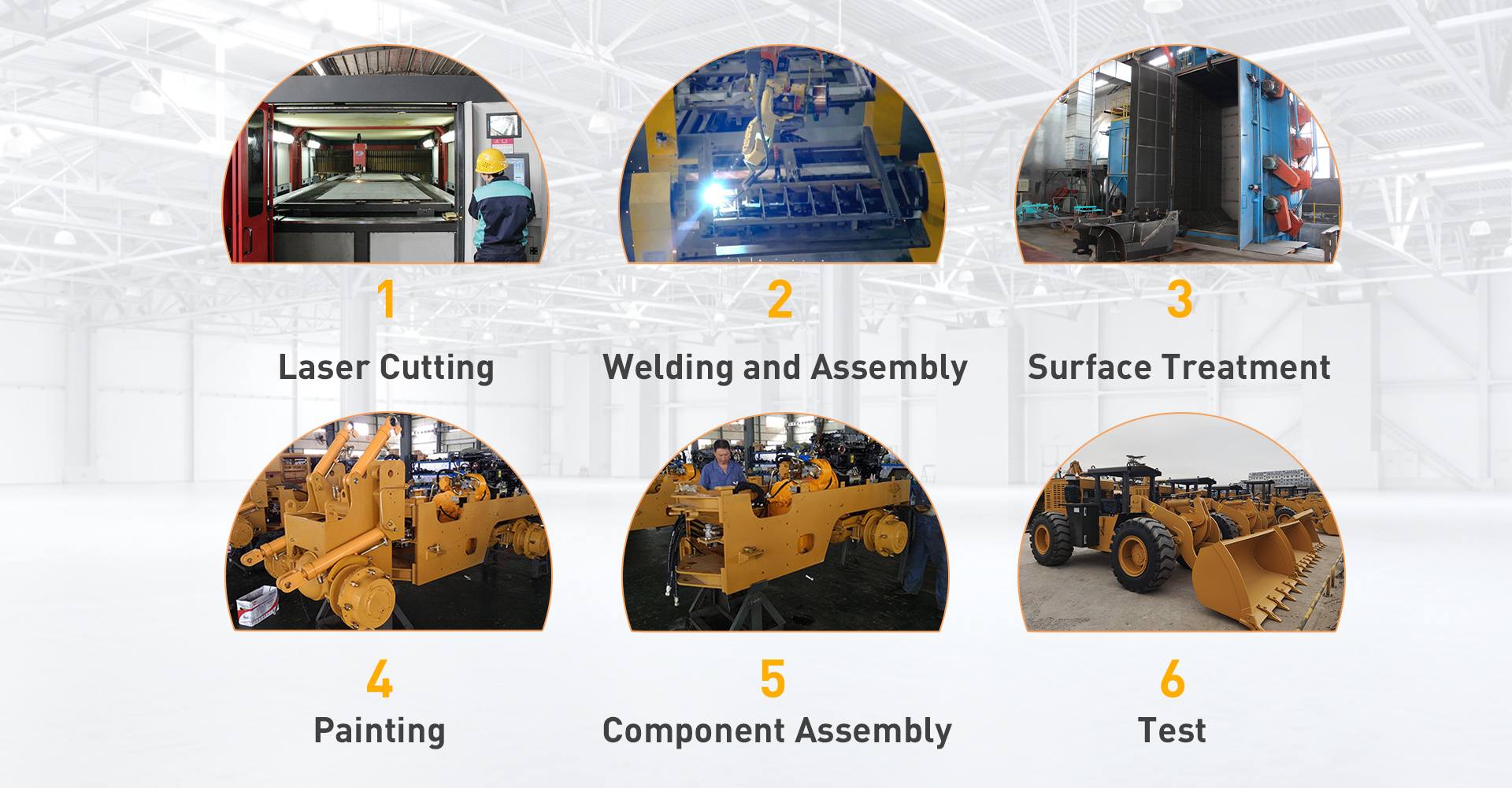

Factory-Built for Reliability
Efficient Underground Mining
Real Customer Feedback in Action
